Technical characteristics of system
POSSIBLE CONFIGURATION
- The lower rails installed in the floor with or without compensator.
- The lower surface of the rails with or without a compensator.
- The panels pass over the edge at an angle of 90 º to 270 º.
- Angles that are less than 90 ° are possible, but without passing panels through these angels.
- Doors at the corners.
TYPES AND SYSTEMS OF ALUMINIUM
- Rail 40x40mm compatible with standard sizes.
- Structural aluminum minimum thickness is 3mm.
REGULATION
- Up to 25mm the level can be regulated if profile compensator below the lower rail is used.
- Up to 50mm the level can be regulated if profile compensator below the lower and above the upper rail is used.
OPENING MODE
- The door can be opened with many different places, eg. outside, inside or both, outside and inside, at the same place.
- Doors can also be found on the left or right side, on both sides and even in the middle (MOBILE DOOR).
- The opening with or without of the extra hand.
- Standard safety blocking system that may be installed on the upper or lower position of the door.
LOCK OPTIONS
- Standard locking system with or without key of stainless steel.
- Any type of lock used in the conventional glass door.
- The side locking with or without a key.
- System with an extra hand provides a fixed position of ventilation.
GLASS
- The glass is tempered or layered.
- The thickness of the glass 6, 8, 10 and 12mm.
COMPLETIONS
- Possible to paint/ lacquering in all RAL colors.
- Painting / lacquering in the wood color.
- Anodization.
MAXIMUM DIMENSIONS
- Glass width up to 800mm. Fixed door up to 900mm.
- The maximum height of 3000mm.
- Width of the complete system is limited, for installations that are quite long there is parking system that allows the panels arrange in only one place.

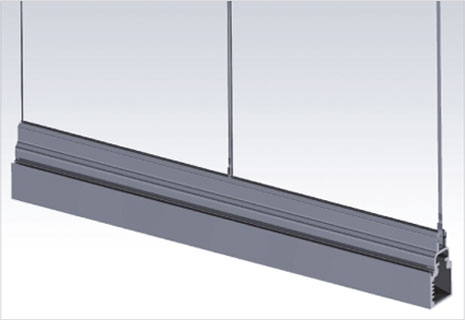

SAFETY
The total weight of the system lies in the lower profile. Unique system on the market which uses gravity for easier handling and safety. One common project weighs around 400 kgs. This system takes the full weight of the bottom rail is much safer than using the overhead hanging.

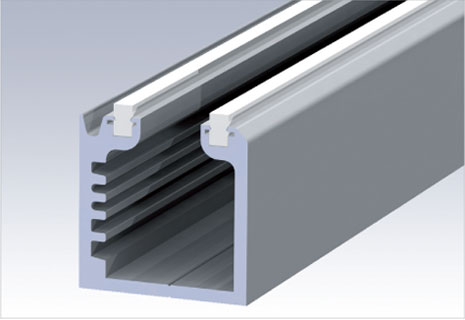

RELIABILITY
Without wheel, without beds of any kind panels glide smoothly making the system safe and durable without additional maintenance.

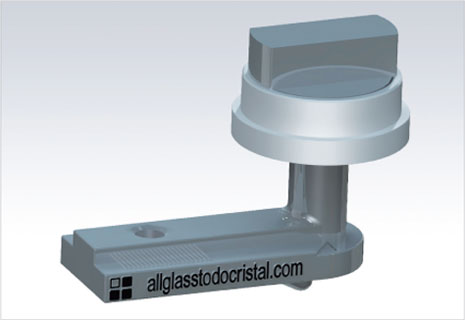

SIMPLE AND QUALITY
In our system for making is used only high quality materials, so the use of plastic materials has been reduced to a minimum.
We use components of high strength, resistance and durability. The number of components is reduced and small, that makes the system easier to use with minimal maintenance.

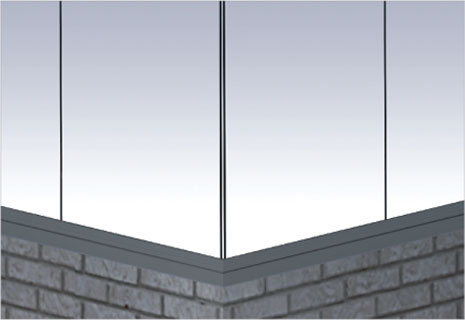

RESISTANCE TO WATER AND WIND
Sealing is optimal, and the plastic covers between panels aren’t used. The best compound is aluminum to aluminum, wherein the wind and the water do not pass. The system design and the weight supported on the bottom rail, which improves the impermeability and resistance to the outside factors, are responsible for all of this.

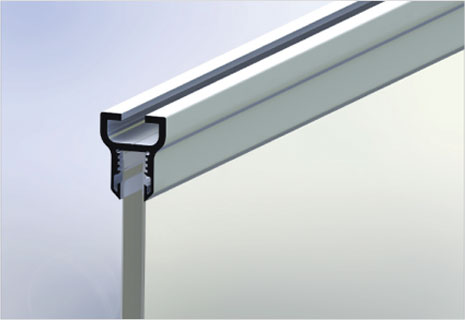

SAFETY, RELIABILITY and ESTHETICS
Safety and reliability are the basis of design and product innovation, which is not in contradiction with the esthetics, so the system has a nice design and nice curves profile, which makes the system unique in the market. The result is the most advanced technology, beauty, design and functionality.

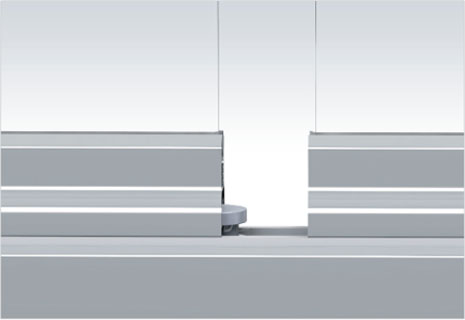

STRENGTH
The panels are internally bonded securely guaranteed components of metal, which provides greater safety of the whole system, as well as improved resistance to water and wind.

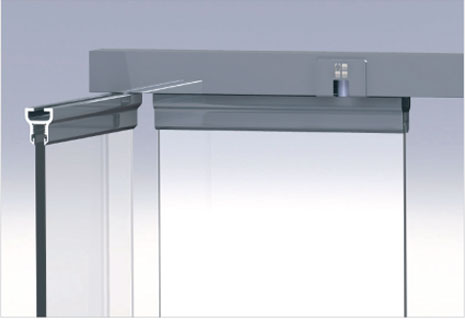

CLOSING WITH OR WITHOUT SUPPORTING HAND
Settings can be selected for the opening, with or without SUPPORTING arm. The last option offers better esthetic solution and provides an easier installation of the system.

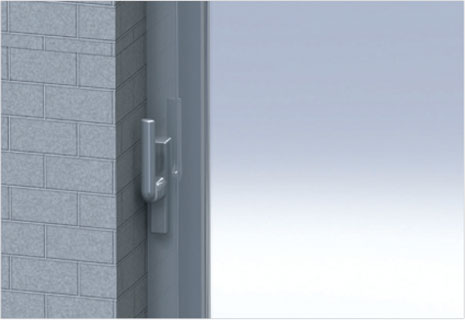

SIDE CLOSING/OPENING
Our innovative locking system with hand offers you greater security, resistance, esthetics and precision than the traditional system of opening. Simply, one handle with a key can open and close the system.
SAFETY LOCKING SYSTEM
Any type of standard locks can be used in systems Todocristal, while improving security. Allowing you greater choice from a wide range of security locking systems with or without a key.

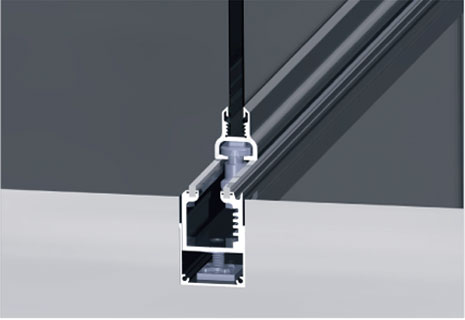

PROFILE COMPENSATOR
System Todocristal / Allglass can be extended or installed directly into the clean and safe way. Profile compensator is used to regulate or adjust the height or level of the system.
